AlCu4SiMg / 2014 / 3.1255 Aluminum Coil-JiangSu QuanGang Metal Materials Co., Ltd

Aluminum coil



Home / Aluminum / Aluminum coil / AlCu4SiMg / 2014 / 3.1255 Aluminum Coil

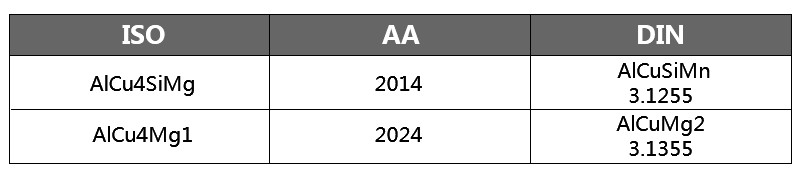

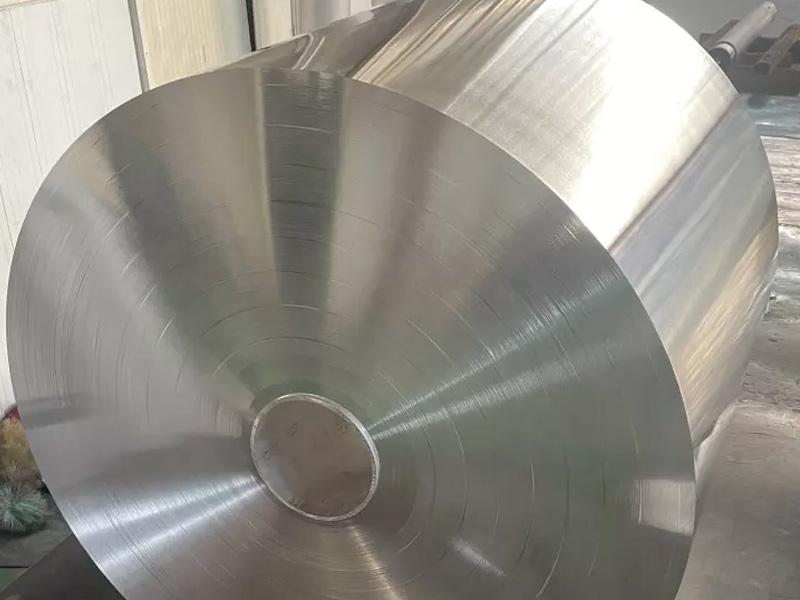

AlCu4SiMg / 2014 / 3.1255 Aluminum Coil

sale@quansteel.com

8615335229905

Parameter

Chemical Composition

Mechanical Properties

Product Name	Aluminium coil(sheet)
Material	1050,1060,3003, 3A21,5052.5005.5083.5A05,6061
Technical Standard	JIS G3141,DIN1623,EN10130
Sheet	0.15 mm- 2.0mm
Normal sheet	2.0mm-6.0mm
Medium plate	6.0 mmt-25.0mm
Plate	25mm-200mm
Super thick plate	more than 200mm
Quality	Approved by SGS,ISO
Width	914 mm, 1000, 1200, 1220mm or as customer's requirement
Length	2000-30000mm
Surface Finish	flat, stucco embossed, corrugated, smooth or orange peel embossed
Facing	compound with kraftpaper or Polysurlyn or Polykraft
Package	Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement
Payment terms	T/T, L/C at sight,West Union,D/P,D/A,Paypal
Delivery time	7-15 Days

Alloy	%Si	%Mg	%Mn	%Cu	%Fe	%Cr	%Zn	%Ti	%Others	%Al
EN AW-1050 A	0.25Max	0.05Max	0.05Max	0.05Max	0.40Max	–	0.07Max	0.05Max	–	99.5 Min
EN AW-1070 A	0.20Max	0.03Max	0.03Max	0.03Max	0.25Max	–	0.07Max	0.03Max	–	99.7 Min
EN AW-1100	Si+Fe 0.95 Max	–	0.05 Max	0.05 – 0.20	–	–	0.10 Max	0.05 Max	–	99.0 Min
EN AW-2011	0.40 Max	–	–	5.00 – 6.00	0.70 Max	–	0.30 Max	–	Bi : 0.20 – 0.60Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	0.20 – 0.80	0.40 – 1.20	3.90 – 5.00	0.70 Max	0.10 Max	0.25 Max	0.15 Max	–	Remainder
EN AW-2024	0.50 Max	1.20 -1.80	0.30 – 0.90	3.80 – 4.90	0.50 Max	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	–	1.00 – 1.50	0.05 – 0.20	0.70 Max	–	0.10 Max	–	0.15 Max	Remainder
EN AW-3103	0.50 Max	0.30 Max	0.90 – 1.50	0.10 Max	0.70 Max	0.10 Max	0.20 Max	0.10 Max	–	Remainder
EN AW-6101A	0.30 – 0.7	0.40 – 0.90	0.03 Max	0.05 Max	0.40 Max	–	–	–	0.10 Max	Remainder
EN AW-6005	0.60 – 0.90	0.40 – 0.60	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6351	0.70 – 1.30	0.40 – 0.80	0.40 – 0.80	0.10 Max	0.50 Max	–	0.20 Max	0.20 Max	0.15 Max	Remainder
EN AW-6060	0.30 – 0.60	0.35 – 0.60	0.10 Max	0.10 Max	0.10 – 0.30	0.05 Max	0.15 Max	0.10 Max	–	Remainder
EN AW-6061	0.40 – 0.80	0.80 – 1.20	0.15 Max	0.15 – 0.40	0.70 Max	0.04 – 0.35	0.25 Max	0.15 Max	–	Remainder
EN AW-6063	0.20 – 0.60	0.45 – 0.90	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6082	0.70 – 1.30	0.60 -1.20	0.40 – 1.00	0.10 Max	0.50 Max	0.25 Max	0.20 Max	0.10 Max	–	Remainder

Alloy	Temper	UTS (Mpa)		Yield Strength (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A	F	60	–	20	–	23
EN AW-1050 A	O	60	95	20	–	23
EN AW-1070 A	F	60	–	20	–	23
EN AW-1100	O	75	110	–	–	25
EN AW-2011	T4	275	–	125	–	12
EN AW-2011	T6	310	–	230	–	6
EN AW-2014	O	–	250	–	135	10
	T4	370	–	230	–	11
	T6	415	–	370	–	5
EN AW-2024	O	–	250	–	150	10
	T3,T3510,T3511	395	–	290	–	6
	T8,T8510,T8511	455	–	380	–	4
EN AW-3003	F	95	–	35	–	20
EN AW-3003	O	95	135	35	–	20
EN AW-3103	F	95	–	35	–	20
EN AW-3103	O	95	135	35	–	20
EN AW-6101A	T6	200	–	170	–	8
EN AW-6005	T4	180	–	90	–	13
EN AW-6005	T6	270	–	225	–	6
EN AW-6351	O	–	160	–	110	12
	T4	205	–	110	–	12
	T6	290	–	250	–	6
EN AW-6060	T4	120	–	60	14	12
	T5	160	–	120	–	6
	T6	190	–	150	–	6
	T64	180	–	120	–	10
	T66	215	–	160	–	6
EN AW-6061	O	–	150	–	110	14
	T4	180	–	110	–	13
	T6	260	–	240	–	6
EN AW-6063	O	–	130	–	–	16
	T4	130	–	65	–	12
	T5	175	–	130	–	6
	T6	215	–	170	–	6
	T66	245	–	200	–	6
EN AW-6082	O	–	160	–	110	12
	T4	205	–	110	–	12
	T5	270	–	230	–	6
	T6	290	–	250	–	6

PRODUCT DISPLAY

STEEL STANDARDS AND GRADES

Aluminum	Chinese Standard	American Standard	European Standard
1xxx Series	1050	-	-
	1050A	-	EN AW-1050A
	1060	1060	-
	1100	1100	-
2xxx Series	2024	2024	EN AW-2024
3xxx Series	3003	3003	EN AW-3003
	3004	3004	EN AW-3004
	3005	3005	EN AW-3005
	3105	3105	EN AW-3105
5xxx Series	5005	5005	EN AW-5005
	5052	5052	EN AW-5052
	5754	5754	EN AW-5754
	5083	5083	EN AW-5083
	5086	5086	EN AW-5086
	5182	-	EN AW-5182
	5049	-	EN AW-5049
	5251	-	EN AW-5251
6xxx Series	6061	6061	EN AW-6061
6xxx Series	6082	-	EN AW-6082
7xxx Series	7075	7075	EN AW-7075

ABOUT US

Key products such as stainless steel, carbon steel, copper, aluminum, and alloys have entered key industries such as petroleum, petrochemicals, railways, automobiles, shipbuilding, containers, and coinage, and are applied in key fields such as high-speed rail, sports venues, and nuclear power. Its rapid and stable development cannot be achieved without the company's high-quality talent team and advanced management model. At the same time, in the spirit of "quality survival, innovative development", we strive to strive for excellence in every detail, achieving a win-win situation for both the company's interests and customer interests. The company is committed to building a resource saving and environmentally friendly modern enterprise, and is committed to building a world-class, high-quality research and development and production base for stainless steel and special alloy materials, becoming the first choice for customers.

WORKSHOP PACKAGING

Packaging and loading:

Packaging: According to customers' needs, use wrapping paper. If the transportation period exceeds 10 days or encounters special climate, we will use waterproof packaging and add plastic film to prevent moisture, water and rust.

Loading: We use the wooden pallet,triangular wood to fix the coil,and the steel wire rope to hold on the both side. That can prevent from the crush injury effectively.

FAQ

Q1:Do you provide samples? Is it free or extra?
A1:Yes, we can provide samples free of charge and the customer will pay the freight.
Q2:What if I don't have export experience ?
A2:We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.
Q3:How long is your lead time?
A3:If it is in stock, it is usually 5-10 days. Or, if there is no inventory, 15 days, depending on the quantity.
Q4:What are your terms of payment?
A4:30% T/T deposit in advance, 70% T/T balance within 5 days after B/L copy, 100%.Irrevocable L/C at sight, 100% Irrevocable L/C after receive B/L 30-120 days, O/A.
Q5:How is your technical support?
A5:We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you call anytime.
